| Quick interchangeable sensor payloads |
Remo-M Fixed-Wing UAS
The Remo-M is widely used unmanned aircraft system built for mobility, rapid deployment, and aerial mapping applications. Featuring a one-of-a-kind deep-stall vertical landing feature, the Remo-M only requires a 15 meter radius landing area. Users benefit from the simplicity of flight planning software and intuitive user interface. Oblique images with roll axis gimbal for intelligent 3D modeling. The Remo-M is the most advanced fixed-wing UAV in its class, delivering greater efficiency, flight mission flexibility and simplicity.
Lightweight – hand-launch design
Autonomous Operation & Autoland
-

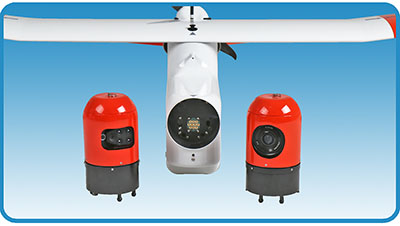

Quick interchangeable sensor payloads – Sony 20mm, Rededge, Sequoia
Adjustable Angle (2-axis) Roll Gimbal
Flexible take-off and Landing
Aircraft Specifications |
||
| Platform Type Material Flight Time Wing Span Operating Temperature Gross Takeoff Weight Flight Speed Maximum Operational Wind |
Fixed Wing Carbon armored fiber 90 minutes at sea level (guaranteed) 51.18" -4°F-122°F 7.7 lbs. 30 to 50 mph (cruising speed 34 mph) 30 mph (15m/s) |
|
|
||
| Flight Management System Ground Control Station Running Time Communication Frequency |
Maestro (Uconsystem AutoPilot) Microsoft Windows Semi-rugged Getac Laptop (360° rotation touch screen) 4+ Hours 900mhz |
Remo-M UAS is designed to provide an effortless set-up experience with a ready-to-fly package that includes: Remo-M aircraft, flight batteries, battery charger, ground station with tripod, laptop computer, field kit, hard-sided transport case, all required cables, control handset, and flight training.
